Drive with Confidence.
Protect your business from false claims and high insurance rates.
Try our Professional Dash camera.


IP68 : Water-Proof, Dust-Proof
IP6X - Protected from dust.
IPX8 - Immersing in over 1 meter water will have no harmful effect.
Built-in GPS
Since the IM-550 has GPS capabilities inside, only the GPS Service License required to use location management.
WiFi & Bluetooth
IM-550 has WiFi capability which provide you the communication inside buildings where cellular network is limited.
Long Battery Life
Approximately 20 hours in 10:10:80 duty cycle.
High Resolution Camera
IM-550 has a high resolution camera and pictures you take via IM-550 can be shown in our GPS Fleet Management website.
IM-550 Standard Package
IM-550 “Standard package” contents.

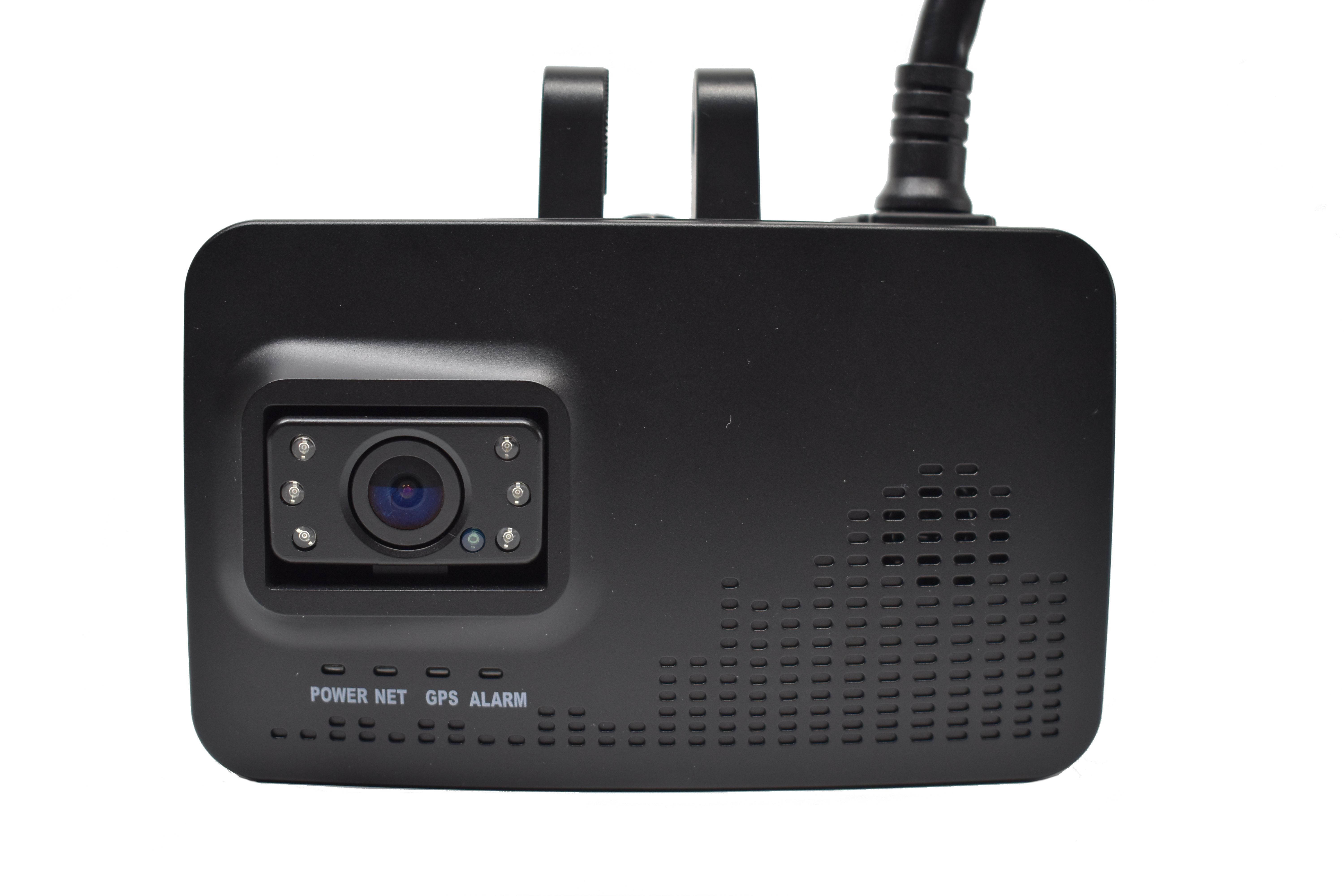

- IM-550 Main Unit
- AC USB Adapter
- USB Cable
Hardware Specifications
Dimensions | 4.84inch*3.5inch*1.8inc |
Working Temperature | 4℉ to 158℉ |
Working Voltage | 8-36V |
Protection | IP54 |
Certificate | CE/FCC/MIL |
Storage | 1 Slot, Max 512GB |
WIFI | Built in WIFI module, AP mode/CPE mode |
GPS | Built in dual mode : GPS+GLONASS |
G-Sensor | HA/HB/HC |
Speaker | Built-in Speaker and mic |
Front view Camera | 1080p@30fps, Diagonal angle: 140 degree, horizontal angle 116 degree |
In-Cab Camera | 1080p@30fps, Diagonal angle: 140 degree, horizontal angle 116 degree |
Third camera(Optional) | Content Extend via wire, for normal surveillance or DMS camera, 720p |
Support AI(Optional) | Face recognition, DMS, ADAS |
Video compression | H.265(Main/Sub), H.264(Main/Sub) |
I/O | Audio Input(2), Audio output(1) |
Interface | USB×1(type c), Panic button, etc. |
