Connect Anytime, Anywhere.
MPT-100 Provides Peace of Mind
Our Professional IP Radio System is using a cellular network. Since the cellular base stations are set up all across the country, our radios cover a larger area compared with conventional radio systems.

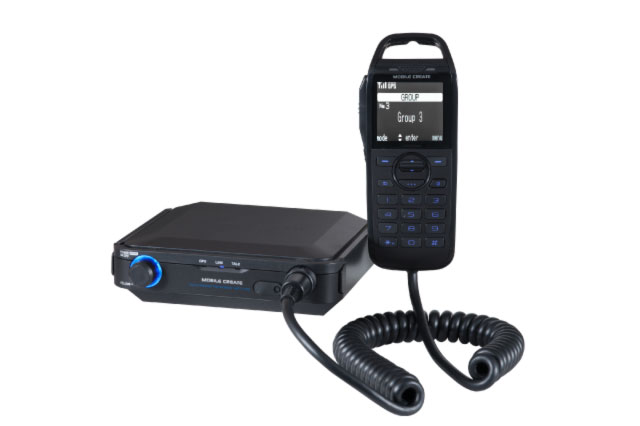

MPT-100
Professional IP Radio - Vehicle-Mounted
- Across the Country Calling
- No FCC License Required
- Various Call Modes
- Unlimited Talk-Time and Texting
- GPS Location Update Frequency: 350ft
- Easy-to-Use features
MPT-100 integrates voice and data seamlessly, offers advanced features and enhanced usability, and delivers increased capacity to keeps your drivers connected safely and productively. The device is attachable on the driver’s seat and supports 12VDC and 24VDC Vehicle Application.
Clear Voice and Sound
The MPT-100 has the sound equalizer, so you can adjust the sound quality depending on the environment. The microphone sensitivity is also adjustable to make for clear sound when calling.
Convenient Shortcut Button
You can set shortcuts for functions which are used frequently such as for the call modes and setting screens. Just press and hold the shortcut button to register shortcuts into the list.
Supports 12VDC and 24VDC
The MPT-100 supports 12VDC and 24VDC Vehicle Applications. The intelligent power circuit has Transient Surge Suppression, Over Voltage Protection and Reverse Connection Protection.
Automatic Power Off
When the microphone is not being used, the MPT-100 automatically turns off the power according to the time setting. The setting options are 4, 8, 12 and 24 hours.
MPT-100 Standard Package
The MPT-100 Standard Package is the set of equipment for vehicle mounted.
- MPT-100 Main Unit
- Multi-Function Microphone
(Microphone Hook included) - DC Power Cable
- USB Cable (2.54ft)
- 3G Communications Module
- Velcro Tapes and Screws
- GPS Antenna
Product Sold Separately
MPT-100 Specifications
| Power Supply Voltage | DC12V/DC24V Support (DC 7V to 32V) | |
| Power Consumption | DC12V | Typ. 400mA / Max 800mA |
| DC24V | Typ. 250mA / Max 500mA | |
| Shutdown | 0.1mA or less (Power off) | |
| Dimensions | Main Body | 5.16 (L) x 5.31 (W) x 1.61 (H) inch (Mounting Bracket included/projections not included) |
| Microphone | 2.32 (L) x 2.32 (W) x 1.26 (H) inch | |
| Weight | Main Body | 11.99 oz (Mounting Bracket included) |
| Microphone | 9.17 oz | |
| Environment | Operating Temperature | -4°F to +140°F |
| Operating Humidity | 20% to 80% | |
| Data Communication | Network | AT&T HSPA+ (850MHz/1900MHz) |
| Required Data Rate | 15kbps (Max) | |
| GPS | Reception Frequency | L1 (1575.42MHz) |
| Number of Channels | 12ch | |
| Receiving Sensitivity | -160dBm | |
| Regulatory | FCC Part 15 Class B (Main Unit, Power Cable, Multi-Function Microphone) | |
| FCC ID: R17HE910 (Communications Module) | ||
| External Interface | Digital Input | x 9ch (Max) |
| Analog Input | x 1ch (Max) | |
| Open Collector Input | x 5ch (Max) | |
| Serial Connection | x 2ch (RS232C) | |
| Note: To use the external interface, customization is needed. Please contact us for details. | ||
